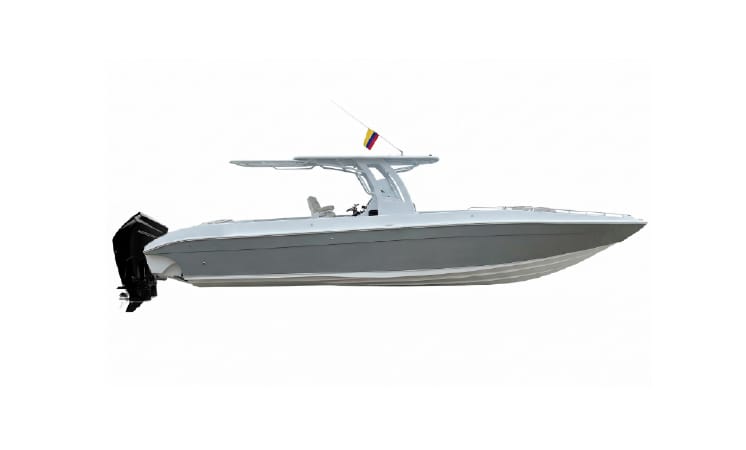

TMR 38

HIGH TECH

ESPECIFICACIONES TÉCNICAS

LOA: 38 ft (11.58 m)
Beam: 10 ft (3 m)
Weight: 13,500 lb
Fuel capacity: 260 gal
Fresh water capacity: 60 gal
Engines: 2 Mercury 300 HP – (3) 450 HP

HULL AND DECK

Hand-laid laminate with mat and woven roving.
Fiberglass deck.
Deck finish: gelcoat.
Color: white.

STORAGE

White gelcoat finish:
(5) seat storage areas: (1) opposite forward bench, (2) in console bench, (2) in aft lounge bench.
(1) bow storage locker.
(1) forward deck-floor locker.

CONSOLE

(1) clear acrylic windshield.
(1) footrest platform.
(1) storage locker with USB port.
Integrated head:
(1) Dometic 12V marine toilet.
(1) fiberglass sink.
(1) silver acrylic mirror with access to electrical system.

FUEL TANK

Material: marine-grade aluminum.
Capacity: 260 gal.
(2) engine pickups.
(1) fuel level sender.
(2) fuel filters (depending on engine count).

PILOT CHAIR FURNITURE

(2) high-performance helm seats.

ELECTRICAL SYSTEM

ourtesy / ambient lighting:
(2) white lights in head.
(2) white lights in aft bench seats.
(1) white light in bow bench.
(2) white lights along side decks.
(4) blue lights in hardtop.
(1) red nav light centered above helm.
Power:
(2) engine batteries.
(1) house / electronics battery.
(1) 8-position switch panel at helm.
(1) compass.

AFT AND BOW ROOM

(1) aft lounge bench.
(1) opposite bow bench.

STABILIZERS KIT

(2) trim tabs: port and starboard.
(1) control switch.
(1) hydraulic pump.

SOUND SYSTEM

(1) Fusion Apollo AM/FM head unit.
(4) 7.7″ speakers flush-mounted in hardtop.
(1) USB/AUX input.

NAVIGATION SYSTEM

(1) Raymarine Axiom 7″ display with chart.
(1) P79S in-hull transducer.

SPEED

2 Mercury 300 – 43 knots
3 Mercury 300 – 50 knots

HARDTOP AND HAND RAILS

(1) white sport-tech top.
(1) white fiberglass hardtop in gelcoat finish.
(2) aluminum bow handrails.
(1) side-door handrail.

COOL BOXES

White gelcoat finish:
(1) behind pilot seat bench.
(1) beside pilot seat bench.
(1) helm module cooler.
(3) aft coolers.

STAINLESS STEEL

10) cleats: (2) 8″ bow, (2) 8″ stern, (2) 6″ mid-ship, (4) on side decks.
(12) stainless cup holders in console cabinet.
Stainless hinges/handles on all lids.
(3) 1/2″ × 3-7/16″ towing eyes.
(2) removable deck fittings 4-3/4″ × 3/4″.
(1) 1-1/2″ stainless fuel fill.
(1) 1-1/2″ stainless water fill.
(2) 90° stainless tank vents.

LADDER

(1) 4-step telescoping ladder.

FRESH WATER

(1) 3.5 GPM shower pump.
(1) portside deck shower.
(1) grey-water box.

BILGE PUMP

Complete set of navigation lights:

(1) Position light
(1) Bubble stern light
(1) Green/red navigation light
(1) VHF radio with GPS
(1) VHF antenna

COMPARTMENTS

(1) fire extinguisher locker in side deck.
(2) portside compartments.
(1) built-in trash bin.

NOTABLE OPTIONS*

Synthetic deck
Thermal camera
Underwater lights
Audio upgrade
Black acrylic console
*More options available.

OTROS DE NUESTROS BOTES

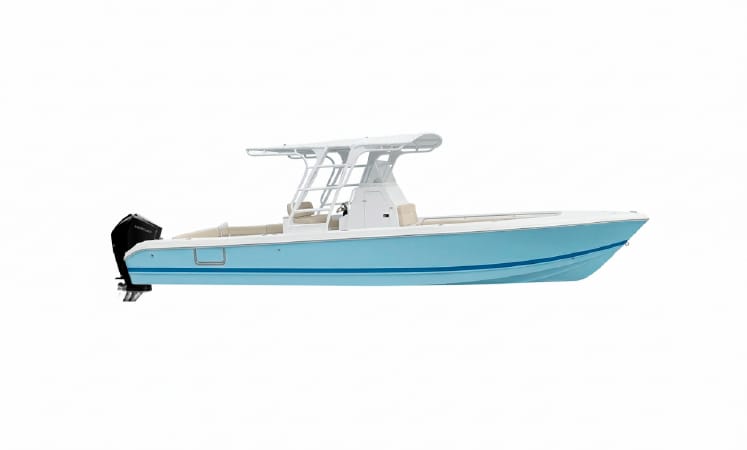

TMR 32
